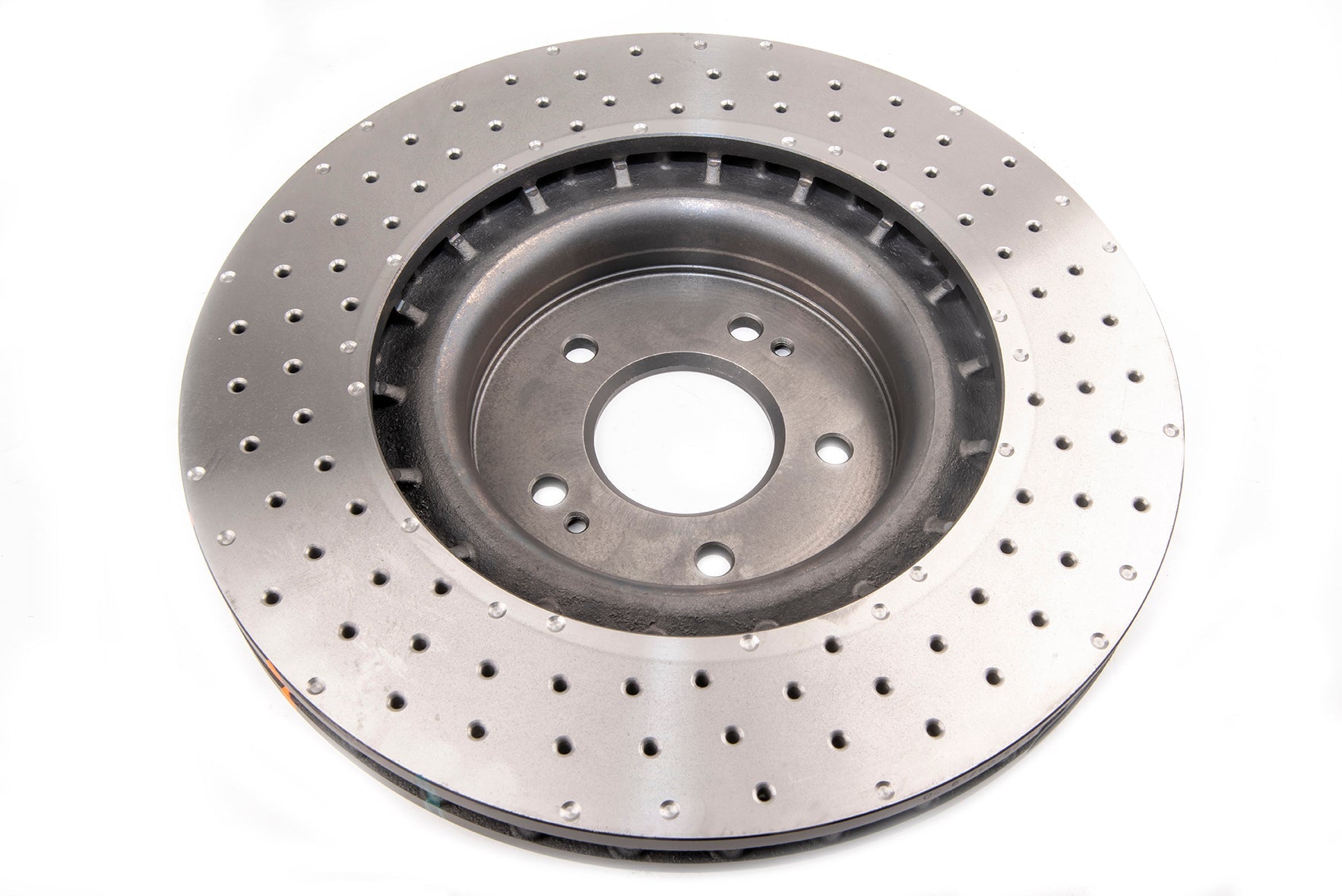

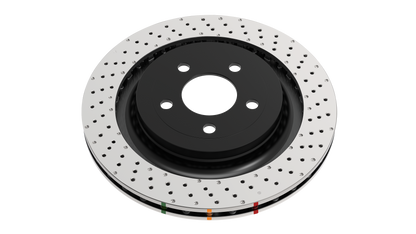

2020-2022 Kia Stinger | DBA 4000 Series Cross-Drilled/Dimpled [Front] | DBA43342XD

Disc Brakes Australia (DBA) is the premier Australian manufacturer, designer and global marketer of performance aftermarket brake rotors and brake pads featuring advanced materials, precision manufacturing, unique slot profiles and options for cross drilled designs.

DBA's direct replacement brake rotors are designed for drivers seeking upgraded performance braking above and beyond standard OE levels. Its performance series are cast from high carbon alloyed iron and undergo Thermal Stability Profiling (TSP), allowing DBA's metallurgy to handle increased stress and heat generated under intense braking applications, time and time again. Typically incorporating DBA's patented Kangaroo Paw ventilation that implements a series of 144 diamond and teardrop patterned pillars, DBA achieves up to a 30% increase in surface area and 20% improvement in cooling efficiency (as compared to a traditional straight vane design).

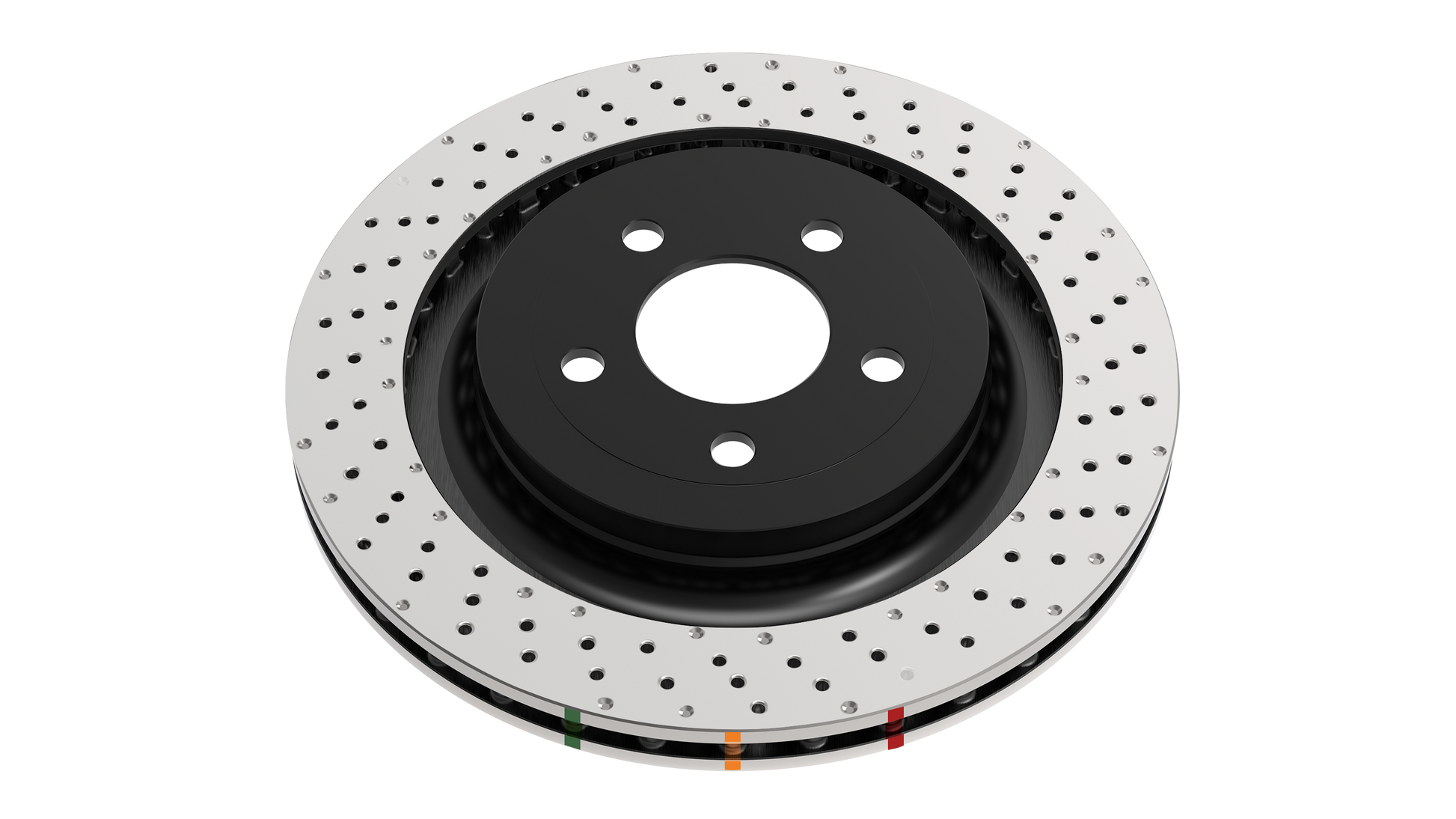

4000 SERIES XD features DBA?s non directional cross drilled and dimpled rotor design. The XD finish provides additional cooling benefits above the HD spec, along with enhanced sports aesthetics.

TECHNICAL SPECIFICATIONS:

• Center Hole Diameter: 69 mm
• Discard Thickness: 30 mm
• Nominal Thickness: 30 mm
• Outside Diameter: 350 mm
• Overall Height: 56.7 mm
• Solid Or Vented Type Rotor: Vented
• Stud/Lug Hole Quantity: 5
• Surface Type: Drilled Slotted

Fitment compatibility can vary greatly within a given model and in some cases only applies to a certain year range, submodel, trim, production date or any number of other possibilities. Please consult the list below for various fitment permutations that may affect compatibility with your specific vehicle.

• 2020-2021 Kia Stinger: 350mm Front Disc
• 2022 Kia Stinger: Brembo
