2012-2020 Nissan 370Z [Z34] (Base and Touring) Supercharger Tuned System [Polished] 407772P

407772P

Shipping calculated at checkout.

Affirm



Product Features

  • Turn-Key Bolt-On Tuned Kit
  • Polished Vortech V-3 Supercharger Unit
  • Air/Water Intercooled
  • Includes Tuning via UpRev w/Cable and Data Logging
  • CARB Exempt - E.O. #D-436-20



STILLEN VQ37 Supercharger Kit for the Nissan 370Z - POLISHED



BENEFITS:

  • Increase Horsepower to 480-520HP (Flywheel) - typical output approximately 400WHP (380-450whp range)
  • Increases Torque For Superior Response
  • Stock-Like Fuel Economy When Cruising at Lower RPM
  • 50-State Legal
  • CARB EXEMPT EO# D-436-20
  • Includes Tune File, Tuner Cable & Data Logging Capability
  • Air-water intercooler chills air charge at engine entry point
  • Fits Under Stock Hood! No hood replacement required
  • Front-mounted compact heat exchanger maximizes cool air flow
  • Available 3 year/36,000 Powertrain Warranty***
  • Typically Installs within 12 hours For Most Techs*




Looking to extract more horsepower and torque from your 370Z? How does around 380HP at the wheels grab you?

Add a dose of torque, better-than-stock heat management and airflow, 50 state emissions compliance (CARB EXEMPT EO# D-436-20) and near stock fuel economy at low RPM. Now you've got the formula for superchargers done the STILLEN way.

We're talking driveable horsepower too, suitable for daily drivers, canyon carvers and track days.


What does 'driveable' mean?

Take an unsuspecting passenger for a low RPM cruise around town in your STILLEN supercharged Nissan 370Z, Infiniti G37 or Infiniti Q50. Keep a light touch on the gas pedal and they might be fooled into thinking there's a bone stock motor under the hood.

They won't suspect a thing....until you hit the town limit sign and crack the throttle wide open.



Scenery gets blurry-in-a-hurry as the centrifugal Vortech blower spins up to hyperspeed with a telltale hiss. The STILLEN designed and built intake manifold sucks in cubic yards of cool air. The remapped ECU fuel management module jacks the boosted fuel pump to inject the precise amount of high octane cocktail into the maelstrom.

Your right foot is orchestrating a symphony of controlled violence that delivers a linear, bottomless powerband. If you can peel your head off the headrest to sneak a glance at your passenger you'll see instant enlightenment and heavy G's at work.


A YEAR IN THE MAKING

You might think it all sounds like witchcraft. But there are no spells and potions involved in creating this enhanced driving experience. Designing this supercharger system for the 370Z, G37 or Q50 involved precision engineering and innovative problem solving - a STILLEN specialty!

Much of the year-long development and testing process surrounded the ECU fuel management settings. STILLEN engineers remapped the ECU fuel management settings for the supercharger system to manage the improved airflow, operating temps and huge power gains, all while achieving 50 state emissions compliance**.

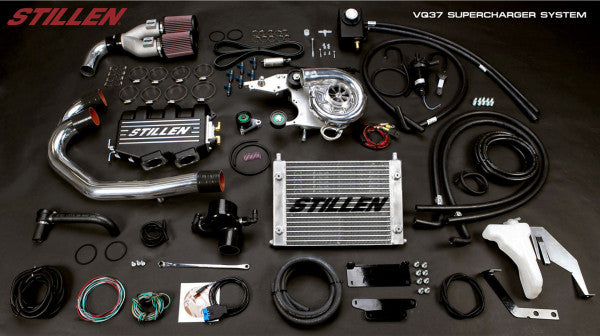

The complete supercharger kit includes larger injectors and a new fuel pump to match the remapped factory ECU.


A BULLETPROOF BUILD

STILLEN designed a new cast aluminum intake manifold specifically for this system, featuring longer runners and a large plenum for the engine to draw air. An integrated air-to-water intercooler system dramatically cools the air charge from the Vortech V-3 Supercharger unit.

The V-3 features a self-contained oiling system and quiet V-belt design, with plenty of additional boost capability for those wanting even more power down the road.

STILLEN took extreme care in designing this system, ensuring that all additional coolers (oil, transmission, power steering, etc) would work with the intercooler system, as the Nissan VQ37 engine is prone to high oil temperatures unless properly cooled.

At all levels of development the system was tested, both for street drivability and reliability under normal traffic and freeway conditions. Stillen drivers flogged the test car at El Toro Air Base, with repeated 140+ mph runs and hard driving on tight courses with excessive revving and redlining. Testing included extensive monitoring of all pertinent air and fluid temperatures.ξ


2 OPTIONS


WITH CABLE OPTION

To tune these supercharger systems STILLEN works with UPRev software. This software requires a license and a cable to load the tune into the vehicleäó»s ECU. The With Cable option is designed for customers who may not live near an UPrev certified tuner or for a dealership who is completing the installation. This is also a great solution for the DIY guy looking to install the kit in his garage.


WITHOUT CABLE OPTION

The "without cable" option is supplied with all of the hardware and the tune. This solution is good for someone who is working with an UPrev pro tuner that already has the licenses and loading cable in their facility. This way you donäó»t need to pay extra for something you might already have access to. Either way, the tune is the same.


STRAIGHT FORWARD INSTALLATION

One of the hallmarks of a STILLEN supercharger is ease of installation. Much of the assembly of the kit is completed here at STILLEN before we pack and ship your supercharger. The main supercharger unit is pre-assembled to the laser-cut billet aluminum mounting brackets. Installation is very straight forward, including detailed step-by-step instructions. Typical install time for a competent shop is 12 hours.


WE'RE YOUR SUPERCHARGER EXPERTS




THE FINE PRINT

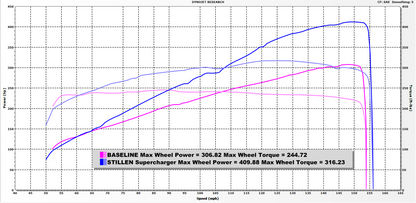

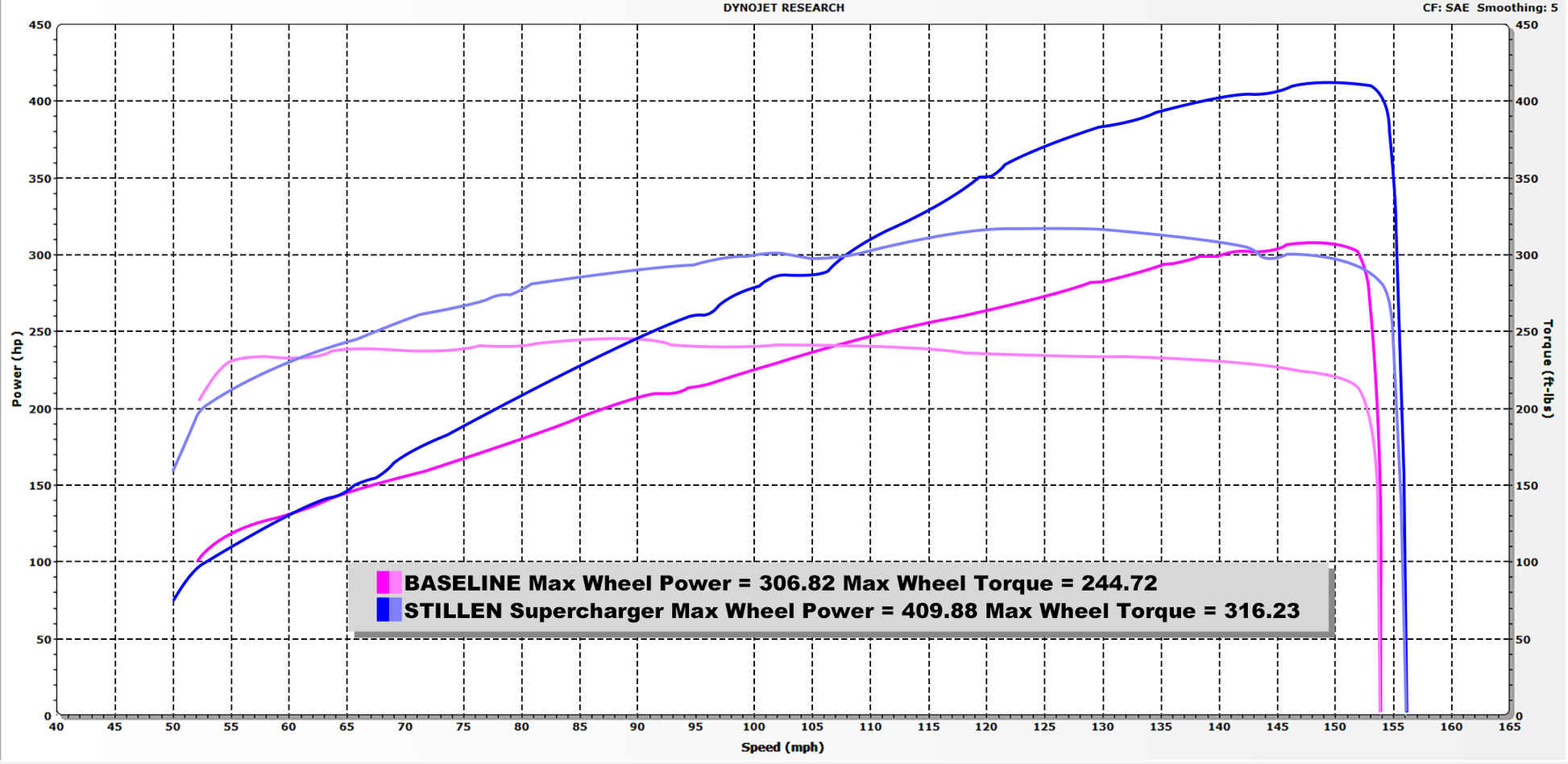

*Individual results will vary depending on baseline condition of the stock engine, type of dynamometer used, temperature, elevation, fuel and various other factors. Typical results are around 400HP (wheel) at under 500' elevation and below 75 degrees F. Typical Horsepower Output Ranges from 380WHP - 450WHP, depending on level of modification, engine health, elevation and the weather that particular day.

**50-state compliance currently for 2008-2014 model years. Call us or check individual product pages for model year updates.

***Certain conditions apply for warranty eligibility. Consult individual product pages or... CALL NOW Your STILLEN Speed, Performance and Style Counselor is standing by at 866-250-5542.

STILLEN is proud to offer our exclusive supercharger kit for the Nissan 370Z. Get yours today!
