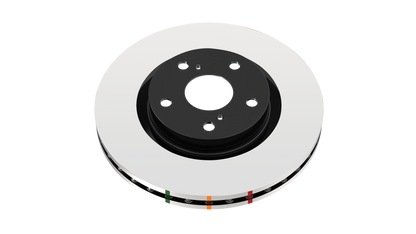

1998-2004 Isuzu Rodeo & More | DBA 4000 Series Standard Brake Rotor [Rear] | DBA4841

Disc Brakes Australia (DBA) is the premier Australian manufacturer, designer and global marketer of performance aftermarket brake rotors and brake pads featuring advanced materials, precision manufacturing, unique slot profiles and options for cross drilled designs.

DBA's direct replacement brake rotors are designed for drivers seeking upgraded performance braking above and beyond standard OE levels. Its performance series are cast from high carbon alloyed iron and undergo Thermal Stability Profiling (TSP), allowing DBA's metallurgy to handle increased stress and heat generated under intense braking applications, time and time again. Typically incorporating DBA's patented Kangaroo Paw ventilation that implements a series of 144 diamond and teardrop patterned pillars, DBA achieves up to a 30% increase in surface area and 20% improvement in cooling efficiency (as compared to a traditional straight vane design).

4000 SERIES HD variant features a smooth OE style rotor finish, popular for drivers looking for the benefits of a 4000 Series rotor but requiring an OE style look, such as controlled race divisions.

TECHNICAL SPECIFICATIONS:

• Center Hole Diameter: 101 mm
• Discard Thickness: 18.1 mm
• Nominal Thickness: 18.1 mm
• Outside Diameter: 313 mm
• Overall Height: 80.6 mm
• Solid Or Vented Type Rotor: Vented
• Stud/Lug Hole Quantity: 6
• Surface Type: Smooth

Fitment compatibility can vary greatly within a given model and in some cases only applies to a certain year range, submodel, trim, production date or any number of other possibilities. Please consult the list below for various fitment permutations that may affect compatibility with your specific vehicle.

• 1999 Isuzu Amigo: 4WD; Rear DiscFr 11/01:
• 2000 Isuzu Amigo: To 7/00:w/ Front Disc Brakes; Dayton 4 Piston Calipers
• 2002 Isuzu Axiom: 4WD; Rear DiscFr 1/01 - To 10/01: / 4WD; Rear DiscFr 11/01:
• 2003 Isuzu Axiom: Fr 3/98:w/ Front Disc Brakes; Dayton 4 Piston Calipers
• 2004 Isuzu Axiom: To 7/00:w/ Front Disc Brakes; Dayton 4 Piston Calipers
• 1998-2000 Isuzu Rodeo: Rear Disc
• 2001-2002 Isuzu Rodeo: Fr 7/01: Rear Disc
• 2001 Isuzu Rodeo: To 6/01: Rear Disc
• 2003 Isuzu Rodeo: Fr VIN K01000: Base; 355mm Front Disc; 325mm Rear Disc
• 2004 Isuzu Rodeo: To 5/11/02: ATE Front Caliper_Cast #4835
• 2001 Isuzu Rodeo Sport: Fr 7/01: Rear Disc / To 6/01: Rear Disc
• 2002-2003 Isuzu Rodeo Sport: Rear Disc
• 1998-2002 Honda Passport: Rear Disc
