+2023 Nissan Z TruControl by STILLEN Inline Power Module - TC101001

Now with 14 Day Satisfaction Guarantee - Test it in your own vehicle completely risk free. Custom files available when purchasing other Stillen performance products.

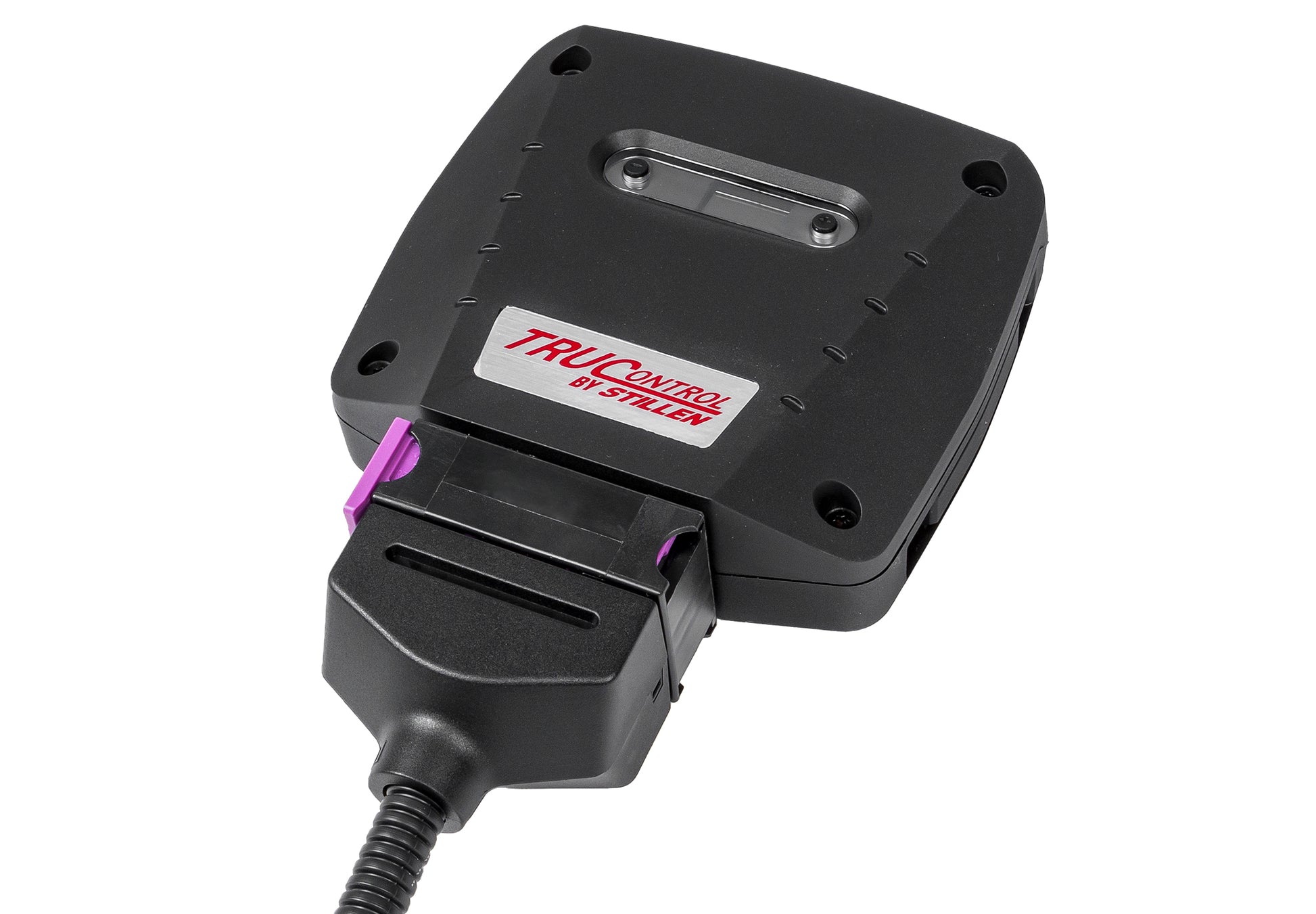

Upgrade your +2023 Nissan Z with the TruControl by STILLEN Inline Power Module! STILLEN is thrilled to introduce this high-performance addition, specially designed to elevate your Nissan Z's driving experience effortlessly. By seamlessly integrating the Power Module into the factory wiring harness and fine-tuning crucial parameters, we unlock increased boost pressure, delivering substantial power and torque gains across the entire power band. And the best part? You'll be up and running in just 15 minutes with no need for any special tools, splicing, or soldering.

But that's not all – we also offer custom tuning files for Stillen performance products. With our expert tuning options, you can optimize your Nissan Z's performance to suit your unique driving preferences and unleash its full potential on the road or the track.

Here's even better news - the TruControl by STILLEN Inline Power Module won't void your factory warranty! As long as you remove the product before visiting the dealership for service, your warranty remains intact. So, you can enjoy the benefits of enhanced power and performance without any worries. The TruControl by STILLEN Inline Power Module is your ticket to the easiest and most affordable horsepower upgrade available for your Nissan Z. Experience the difference and take your driving to the next level today!


Features and Benefits:

  • +70 flywheel Horsepower gain*
  • +86 ft. lbs. Torque gain at the wheels*
  • Very easy installation; Does not alter the factory ECU
  • Bluetooth integration
  • Free app with smartphone integration
  • No wiring or specialty tools required
  • Easy removal and reversible to maintain factory warranty
  • Over-the-air Custom Tuning file for Stillen aftermarket parts (exhaust, intake, etc)
  • Not for sale in California

*Results may vary




The Numbers

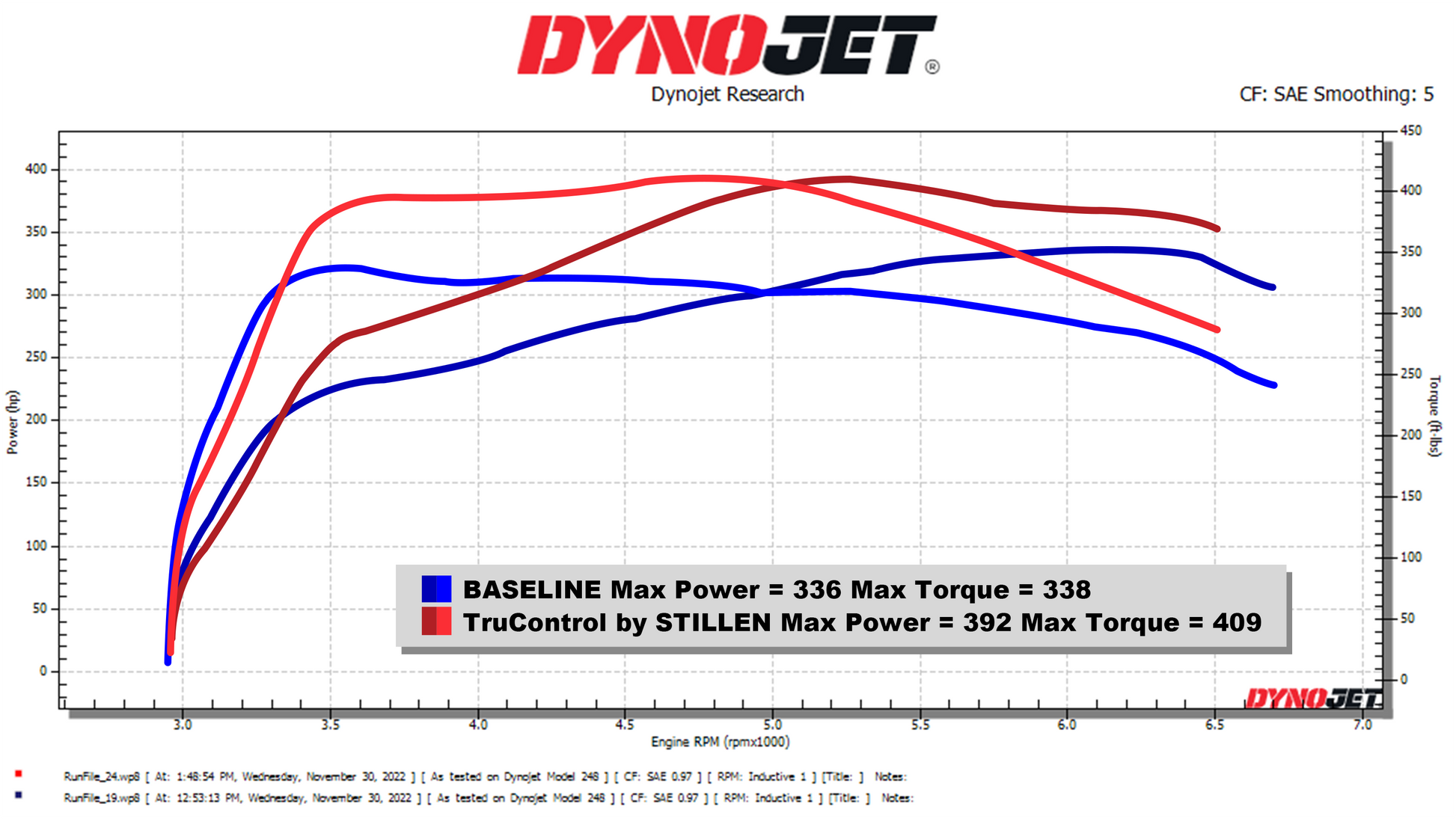

From the factory the Z is rated at 400 flywheel horsepower.  On our dyno we saw a maximum wheel horsepower output of 336 horsepower at 6300 RPM*.  This is about a 15% drivetrain loss.  Great work by NISSAN to get all of that power to the ground.  After installing our TruControl by STILLEN Inline Power Module the dyno reported back a Max horsepower output of 392 wheel horsepower at 5390 RPM*.  Simply by installing the Trucontrol ECU into our Z we were able to gain more than 70 flywheel horsepower*.



Even more amazing than the gains in horsepower are the gains in torque output.  As you can see in the dyno the factory torque curve begins to decline at just over 3500 RPM*.  At this RPM the stock car produced 338 ft. lbs of torque.  The TruControl by STILLEN Inline Power Module is at 393 ft. lbs of torque*.  Whereas the factory torque curve begins to decline, the TruControl by STILLEN Inline Power Module curve only increases further until reaching its maximum output at 4720 RPM*.  At this point the factory output has declined to 323 ft. lbs.* while the TruControl by STILLEN Inline Power Module has managed to increase to 409 ft. lbs of torque*.  Truly amazing gains that make the Z an absolutely incredible car to drive.

*Results may vary



Easy to Use

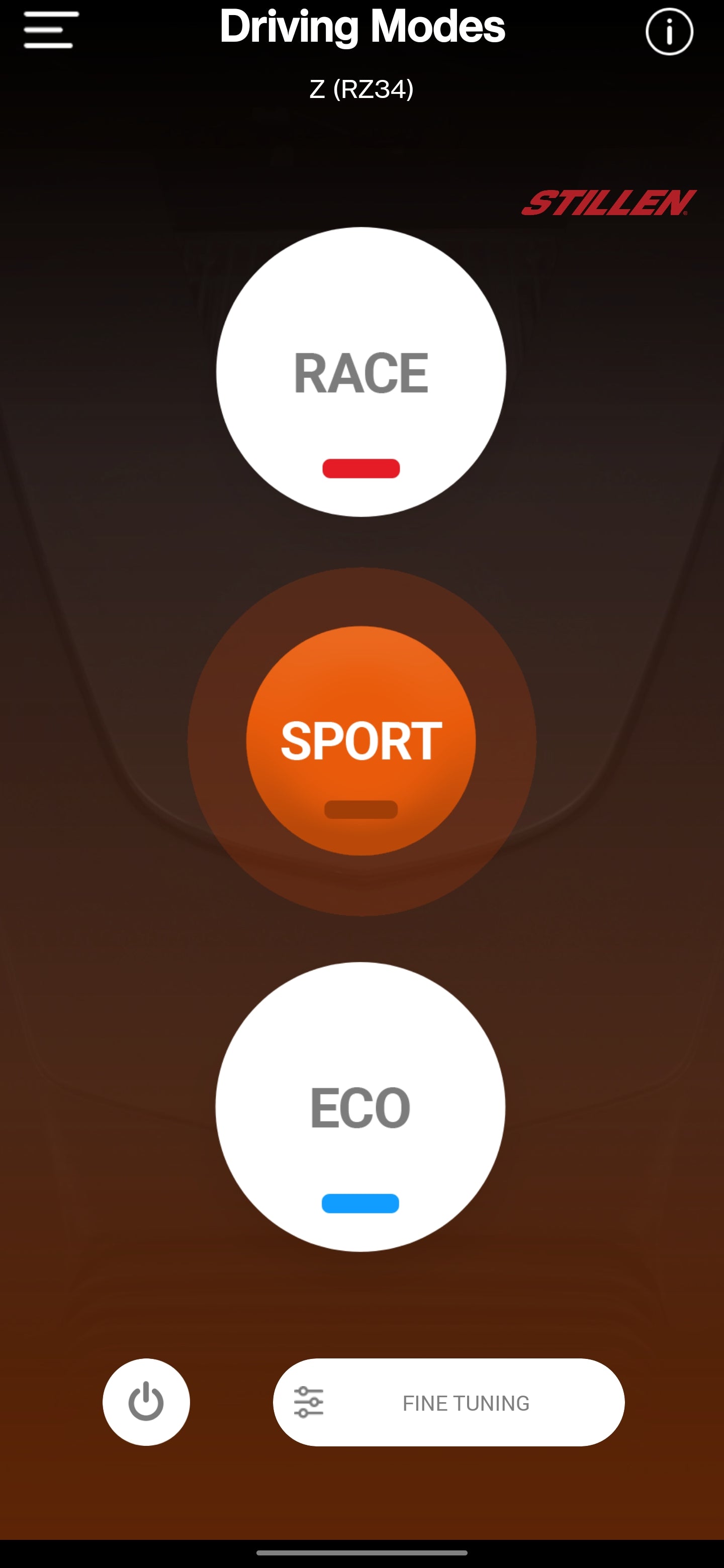

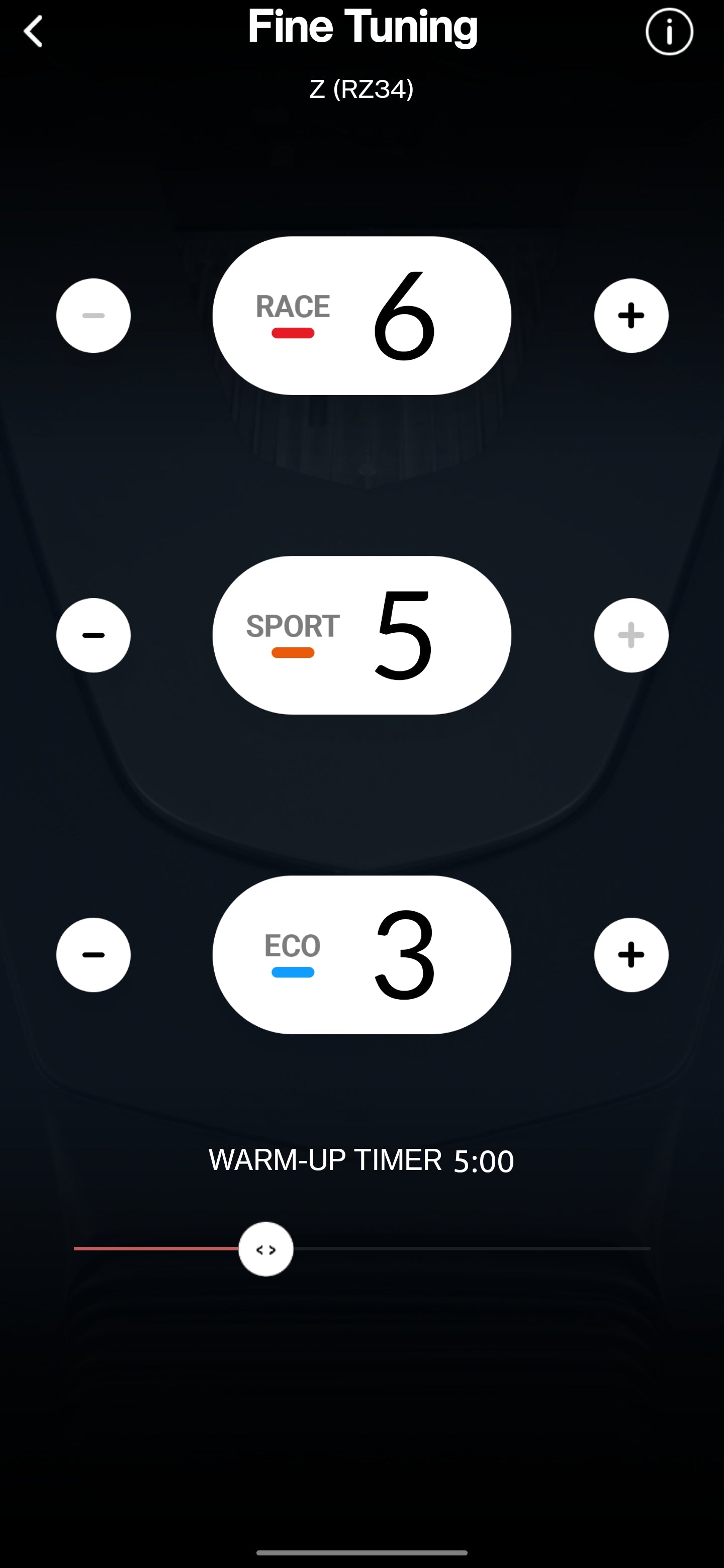

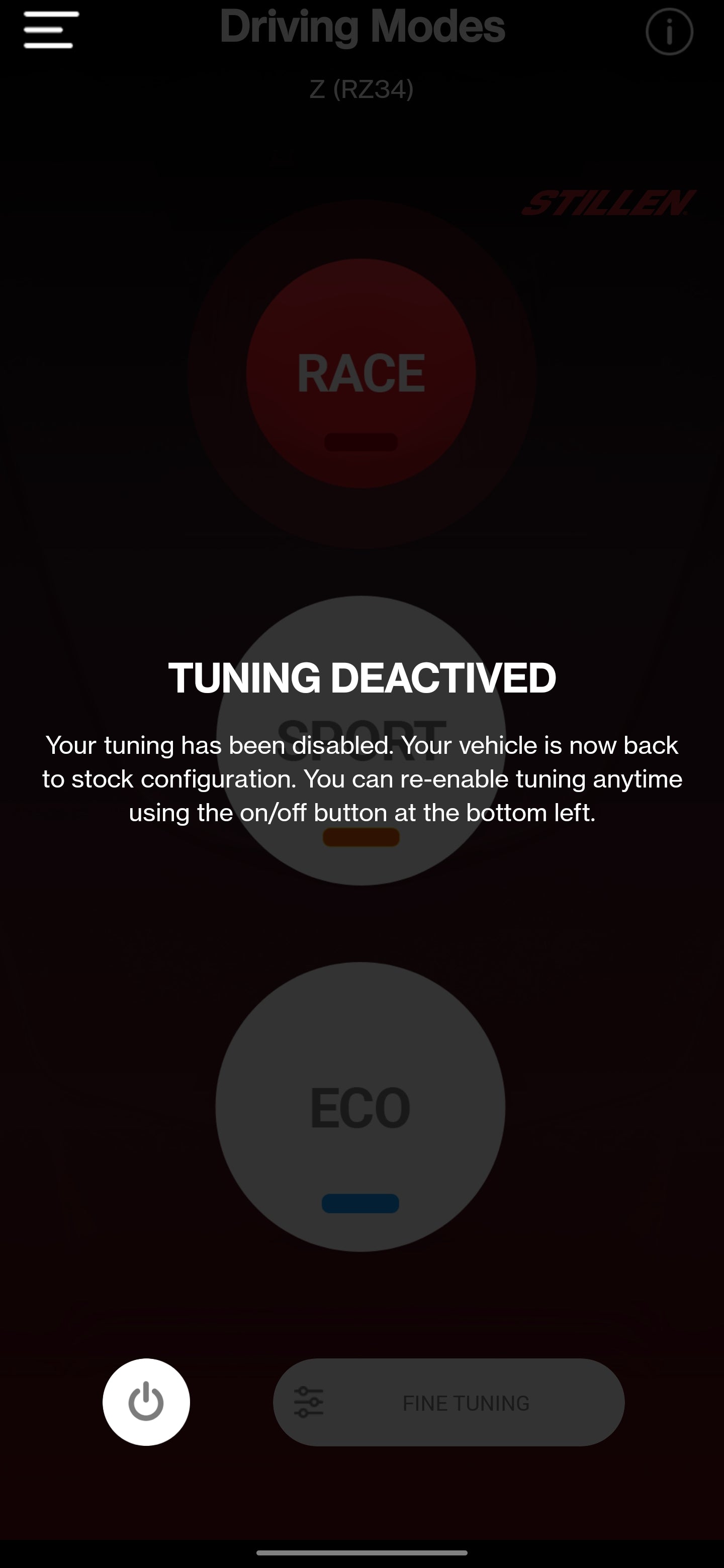

With the engine on or with the key on, you can go through and [-/+] select which calibration you want to run at any point in time. You can use the Tuning: Pro App which also controls and resets all calibrations based on what you input in the application.



The TruControl by STILLEN Inline Power Module comes preloaded with up to 7 different maps for your Toyota Tundra. These maps are going to range anywhere from Race mode to Sport mode to Eco mode.
