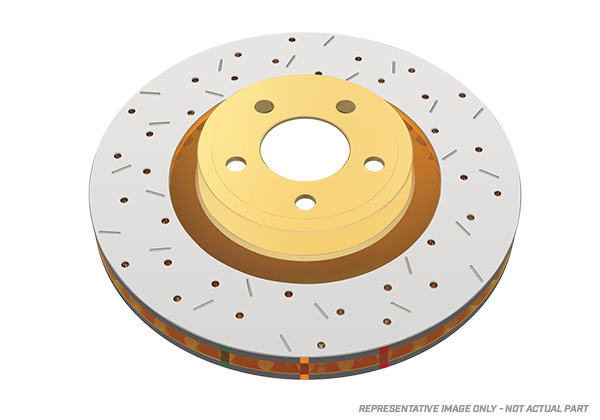

2012-2021 Ford F-59 Commercial Stripped Chassis & More | DBA 4000 Series XS Cross-Drilled/Slotted Brake Rotor [Rear | Front] | DBA4796XS

Disc Brakes Australia (DBA) is the premier Australian manufacturer, designer and global marketer of performance aftermarket brake rotors and brake pads featuring advanced materials, precision manufacturing, unique slot profiles and options for cross drilled designs.

DBA's direct replacement brake rotors are designed for drivers seeking upgraded performance braking above and beyond standard OE levels. Its performance series are cast from high carbon alloyed iron and undergo Thermal Stability Profiling (TSP), allowing DBA's metallurgy to handle increased stress and heat generated under intense braking applications, time and time again. Typically incorporating DBA's patented Kangaroo Paw ventilation that implements a series of 144 diamond and teardrop patterned pillars, DBA achieves up to a 30% increase in surface area and 20% improvement in cooling efficiency (as compared to a traditional straight vane design).

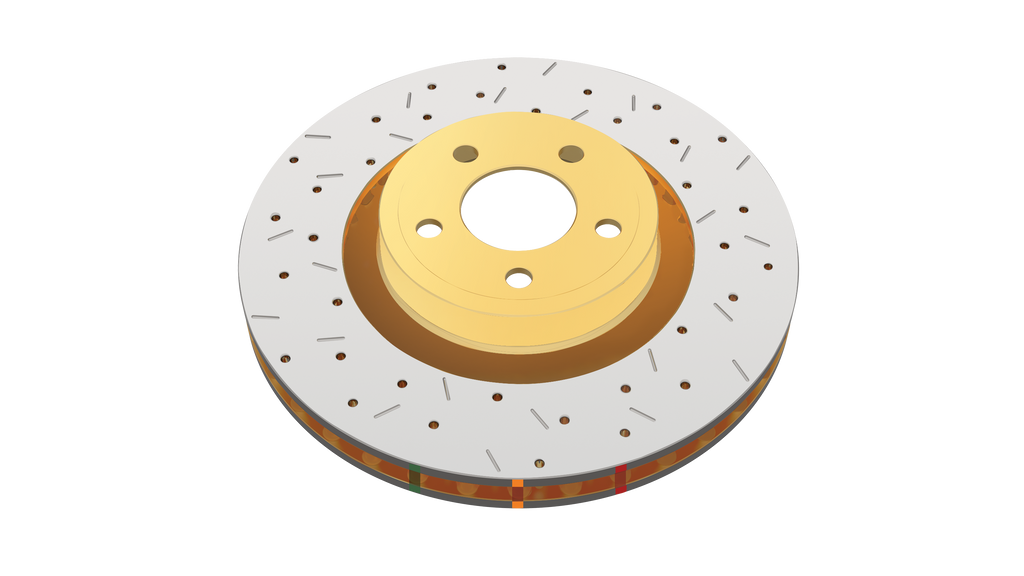

4000 SERIES XS Gold provides all the benefits of 4000 Series, with a premium non directional cross drilled and slotted design allowing more brake pad friction dust and gases to escape, plus an attractive gold finish on the rotor hub.

TECHNICAL SPECIFICATIONS:

• Center Hole Diameter: 126.5 mm
• Discard Thickness: 30 mm
• Nominal Thickness: 30 mm
• Outside Diameter: 326 mm
• Overall Height: 98.5 mm
• Solid Or Vented Type Rotor: Vented
• Stud/Lug Hole Quantity: 8
• Surface Type: Drilled Slotted

Fitment compatibility can vary greatly within a given model and in some cases only applies to a certain year range, submodel, trim, production date or any number of other possibilities. Please consult the list below for various fitment permutations that may affect compatibility with your specific vehicle.

• 1999 Ford F-250 Super Duty: Fr 3/22/99, Super-Duty; Rear Disc / To 12/99:4 Whl ABS, Super-Duty; Rear Disc / To 3/21/99, Super-Duty; Rear Disc
• 2000 Ford F-250 Super Duty: Fr 1/00: / Fr 1/00:2 Whl ABS / Fr 1/00:4 Whl ABS
• 1999-2002 Ford F-350 Super Duty: SRW, M14-2.0 Studs; 4 Whl ABS
• 1999 Ford F-350 Super Duty: SRW, M14-2.0 Studs; 2 Whl ABS
• 2003-2004 Ford F-350 Super Duty: SRW, To 12/06
• 1999 Ford F-450 Super Duty: To 3/22/99:
• 1999 Ford F-550 Super Duty: Fr 3/22/99:
• 2000 Ford F-53 Motorhome Chassis: Fr 10/04/00: / To 10/03/00:
• 2008-2009 Ford F-53 Motorhome Chassis: Fr 11/07: Under 23k lb GVW; Dana 80 110 & 130 Rear Axles
• 2015-2019 Ford F-53 Motorhome Chassis: Under 23k lb GVW; Dana 80 110 & 130 Rear Axles
• 2012-2021 Ford F-59 Commercial Stripped Chassis: Under 23k lb GVW; Dana 80 110 & 130 Rear Axles
