2009-2019 GMC Savana 4500 & More | DBA 4000 Series XS Cross-Drilled/Slotted Brake Rotor [Rear] | DBA42049XS

Disc Brakes Australia (DBA) is the premier Australian manufacturer, designer and global marketer of performance aftermarket brake rotors and brake pads featuring advanced materials, precision manufacturing, unique slot profiles and options for cross drilled designs.

DBA's direct replacement brake rotors are designed for drivers seeking upgraded performance braking above and beyond standard OE levels. Its performance series are cast from high carbon alloyed iron and undergo Thermal Stability Profiling (TSP), allowing DBA's metallurgy to handle increased stress and heat generated under intense braking applications, time and time again. Typically incorporating DBA's patented Kangaroo Paw ventilation that implements a series of 144 diamond and teardrop patterned pillars, DBA achieves up to a 30% increase in surface area and 20% improvement in cooling efficiency (as compared to a traditional straight vane design).

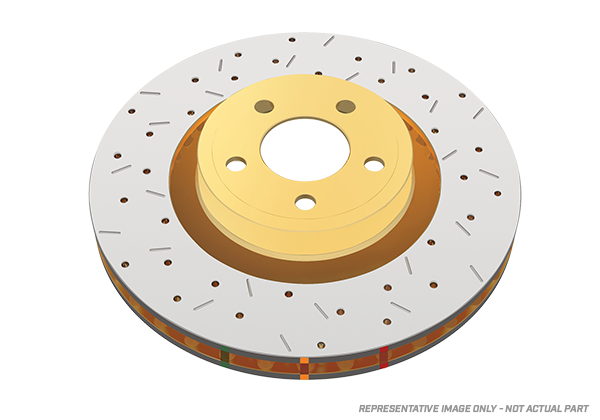

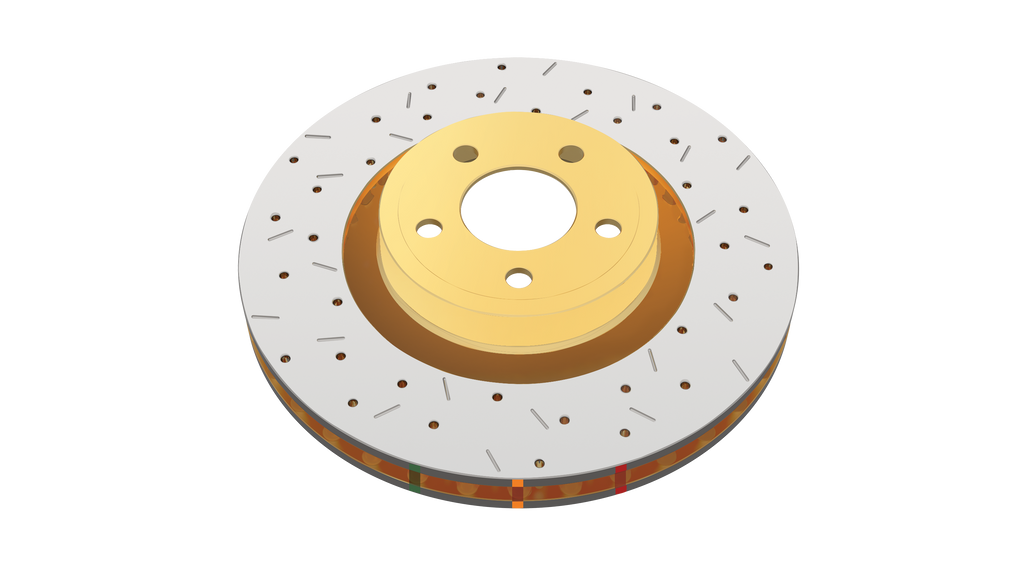

4000 SERIES XS Gold provides all the benefits of 4000 Series, with a premium non directional cross drilled and slotted design allowing more brake pad friction dust and gases to escape, plus an attractive gold finish on the rotor hub.

TECHNICAL SPECIFICATIONS:

• Center Hole Diameter: 118 mm
• Discard Thickness: 29 mm
• Nominal Thickness: 29 mm
• Outside Diameter: 330 mm
• Overall Height: 86 mm
• Solid Or Vented Type Rotor: Vented
• Stud/Lug Hole Quantity: 8
• Surface Type: Drilled Slotted

Fitment compatibility can vary greatly within a given model and in some cases only applies to a certain year range, submodel, trim, production date or any number of other possibilities. Please consult the list below for various fitment permutations that may affect compatibility with your specific vehicle.

• 2016 Chevrolet Express 4500: Pass. Van, Panel Van; SRW, 86mm Tall
• 2019 Chevrolet Express 4500: Pass. Van, Panel Van; SRW, 91mm Tall
• 2002 Chevrolet Avalanche 2500: 2" Body Raise / exc 2" Body Raise
• 2003-2004 Chevrolet Avalanche 2500: 2" Body Raise, 86mm Tall rear rotor / exc 2" Body Raise, 86mm Tall rear rotor
• 2005-2006 Chevrolet Avalanche 2500: 86mm tall rear rotor
• 2003-2005 Chevrolet Express 2500: 8 Lug, Gas
• 2006-2010 Chevrolet Express 2500: Gas
• 2015-2019 Chevrolet Express 2500: 86mm Tall
• 2004-2007 Chevrolet Express 3500: SRW, 86mm Tall
• 2008-2010 Chevrolet Express 3500: SRW, 86mm High
• 2011 Chevrolet Express 3500: SRW, 91mm High
• 2017 Chevrolet Express 3500: Cutaway Van; SRW, 86mm Tall / Pass. Van, Panel Van; SRW, 86mm Tall
• 2018 Chevrolet Express 3500: Cutaway Van; SRW, 91mm Tall / Pass. Van, Panel Van; SRW, 91mm Tall
• 2021 Chevrolet Express 3500: SRW
• 2004 Chevrolet Silverado 1500: Extended Cab; HD Pkg; exc Hybrid Model & SS, 4.63" Hub Hole
• 2003-2005 Chevrolet Silverado 1500 HD: 2 Wheel Steering
• 1999-2000 Chevrolet Silverado 2500: 5.3L or 6.0L, A/T
• 2001-2002 Chevrolet Silverado 2500: A/T
• 2000 Chevrolet Suburban 2500: Rear Disc, 4.63" Hub Hole
• 2001-2006 Chevrolet Suburban 2500: 4.63" Hub Hole
• 2003 Chevrolet Suburban 2500: 2 Wheel Steering, 4.63" Hub Hole
• 2004 Chevrolet Suburban 2500: 2 Wheel Steering, 4.83" Hub Hole
• 2005 Chevrolet Suburban 2500: Rear Disc, GT
• 2009-2019 GMC Savana 4500: Pass. Van, Panel Van; SRW, 86mm Tall
• 2009 GMC Savana 4500: SRW, 86mm High
• 2003-2005 GMC Savana 2500: 8 Lug, 86mm rear disc
• 2006-2010 GMC Savana 2500: 86mm rear disc
• 2015-2018 GMC Savana 2500: 86mm Tall
• 2004-2007 GMC Savana 3500: SRW, 86mm Tall
• 2007-2011 GMC Savana 3500: SRW, 86mm High
• 2016-2017 GMC Savana 3500: Cutaway Van; SRW, 86mm Tall / Pass. Van, Panel Van; SRW, 86mm Tall
• 2018 GMC Savana 3500: Pass. Van, Panel Van; SRW, 91mm Tall
• 1999-2000 GMC Sierra 2500: 5.3L or 6.0L, A/T
• 2001-2004 GMC Sierra 2500: A/T
