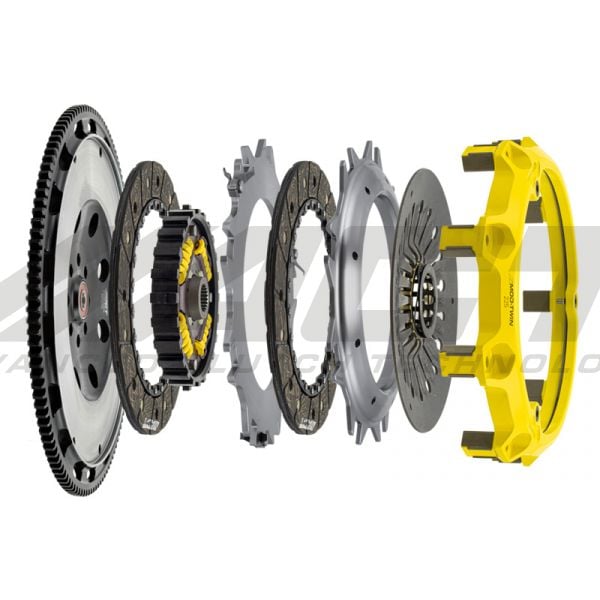

2004-2021 Subaru Mod-Twin 225 XT Sprung Street ACT T2S-S05

Soft progressive engagement, light pedal effort, smooth shifting with OE to mild transmission gear noise. Forged Aluminum Cover, Mono-drive hub, exclusive diaphragm, premium friction materials, and hardened wear points ensure this long-life twin performs and survives under the most demanding conditions. Delivers maximum performance and high heat tolerance by combining robust design, strategic features, choice materials, and close tolerances. Street or Street/Strip. Applying tactical engineering to the MOD-TWIN, ACT presents unique solutions to common tradeoffs found on twin disc clutches, resulting in an ultra-durable, customer serviceable, long-lasting clutch with very high torque capacity. All are 100% clamp load tested, balanced and SFT certified. . T2S-S05 Mod-Twin 225 HD Sprung Street Kit is designed for high powered AWD street cars. It unites uncompromised pedal feel, durability, engagement quality with very high torque capacity by combining twice the organic friction surfaces with an ultra-durable spring center Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process providing a consistent light pedal feel. Steel-backed Friction Plates with high quality organic friction materials deliver stable friction coefficient, good heat capacity and long clutch life. These Friction Plates uniformly transfer torque to the Mono-Drive sprung hub assembly which extends input shaft life and reduces driveline shock from torsional vibration. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung Mono-Drive hub assembly, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately. T2S-S05Mod-Twin 225 XT Sprung Street

Specifications
Item Description Mod-Twin 225 XT Sprung Street
Product Weight (lbs. ) 28. 1
Torque Capacity (ft/lbs. ) 875
Torque Capacity Over OE 146%
Disc Material Organic
Clutch Disc Diameter (Inches) 8. 8
Clutch Disc Diameter (Millimeters) 225
Input Shaft Diameter (inches) 1
Pressure Plate Type Xtreme
Warranty 12 Months
SFI 1. 2

Description
Feel Soft progressive engagement, light pedal effort, smooth shifting with OE to mild transmission gear noise.
Life Forged Aluminum Cover, Mono-drive hub, exclusive diaphragm, premium friction materials, and hardened wear points ensure this long-life twin performs and survives under the most demanding conditions.
Quality Delivers maximum performance and high heat tolerance by combining robust design, strategic features, choice materials, and close tolerances.
Recommended Use Street or Street/Strip
ACT Difference Applying tactical engineering to the MOD-TWIN, ACT presents unique solutions to common tradeoffs found on twin disc clutches, resulting in an ultra-durable, customer serviceable, long-lasting clutch with very high torque capacity. All are 100% clamp load tested, balanced and SFT certified.

Vehicle Fitment
Fitment Info
Application Engine
2004 Subaru Impreza WRX STI 2. 5 H4 GAS FI 2458cc | DOHC | Turbocharged
2005 Subaru Impreza WRX STI 2. 5 H4 GAS FI 2458cc | DOHC | Turbocharged
2006 Subaru Impreza WRX STI 2. 5 H4 GAS FI 2458cc | DOHC | Turbocharged
2007 Subaru Impreza WRX STI 2. 5 H4 GAS FI 2458cc | DOHC | Turbocharged
2007 Subaru Impreza WRX STI Limited 2. 5 H4 GAS FI 2458cc | DOHC | Turbocharged
2008 Subaru Impreza WRX STI 2. 5 H4 GAS FI 2458cc | DOHC | Turbocharged
2009 Subaru Impreza WRX STI 2. 5 H4 GAS FI 2458cc | DOHC | Turbocharged
2010 Subaru Impreza WRX STI 2. 5 H4 GAS FI 2458cc | DOHC | Turbocharged
2010 Subaru Impreza WRX STI Special Edition 2. 5 H4 GAS FI 2458cc | DOHC | Turbocharged
2011 Subaru Impreza WRX STI 2. 5 H4 GAS FI 2458cc | DOHC | Turbocharged
2011 Subaru Impreza WRX STI Limited 2. 5 H4 GAS FI 2458cc | DOHC | Turbocharged
2012 Subaru Impreza WRX STI 2. 5 H4 GAS FI 2458cc | DOHC | Turbocharged
2012 Subaru Impreza WRX STI Limited 2. 5 H4 GAS FI 2458cc | DOHC | Turbocharged
2013 Subaru Impreza WRX STI 2. 5 H4 GAS FI 2458cc | DOHC | Turbocharged
2013 Subaru Impreza WRX STI Limited 2. 5 H4 GAS FI 2458cc | DOHC | Turbocharged
2013 Subaru WRX STI 2. 5 H4 GAS FI 2458cc | DOHC
2013 Subaru WRX STI Base 2. 5 H4 GAS FI 2458cc | DOHC
2013 Subaru WRX STI Sport-tech 2. 5 H4 GAS FI 2458cc | DOHC
2014 Subaru Impreza WRX STI 2. 5 H4 GAS FI 2458cc | DOHC | Turbocharged
2014 Subaru Impreza WRX STI Limited 2. 5 H4 GAS FI 2458cc | DOHC | Turbocharged
2014 Subaru WRX STI 2. 5 H4 GAS FI 2458cc | DOHC
2014 Subaru WRX STI Base 2. 5 H4 GAS FI 2458cc | DOHC
2014 Subaru WRX STI Sport-tech 2. 5 H4 GAS FI 2458cc | DOHC
2014 Subaru WRX STI Tsurugi Edition 2. 5 H4 GAS FI 2458cc | DOHC
2015 Subaru WRX STI 2. 5 H4 GAS FI 2458cc | DOHC
2015 Subaru WRX STI Base 2. 5 H4 GAS FI 2458cc | DOHC
2015 Subaru WRX STI Launch Edition 2. 5 H4 GAS FI 2458cc | DOHC
2015 Subaru WRX STI Limited 2. 5 H4 GAS FI 2458cc | DOHC
2016 Subaru WRX STI 2. 5 H4 GAS FI 2458cc | DOHC
2016 Subaru WRX STI Base 2. 5 H4 GAS FI 2458cc | DOHC
2016 Subaru WRX STI Limited 2. 5 H4 GAS FI 2458cc | DOHC
2016 Subaru WRX STI Series. HyperBlue 2. 5 H4 GAS FI 2458cc | DOHC
2017 Subaru WRX STI Base 2. 5 H4 GAS FI 2458cc | DOHC
2017 Subaru WRX STI Limited 2. 5 H4 GAS FI 2458cc | DOHC
2017 Subaru WRX STI Sport 2. 5 H4 GAS FI 2458cc | DOHC
2017 Subaru WRX STI Sport-tech 2. 5 H4 GAS FI 2458cc | DOHC
2018 Subaru WRX STI Base 2. 5 H4 GAS FI 2458cc | DOHC
2018 Subaru WRX STI Limited 2. 5 H4 GAS FI 2458cc | DOHC
2018 Subaru WRX STI STI 2. 5 H4 GAS FI 2458cc | DOHC
2018 Subaru WRX STI Sport 2. 5 H4 GAS FI 2458cc | DOHC
2018 Subaru WRX STI Sport-tech 2. 5 H4 GAS FI 2458cc | DOHC
2018 Subaru WRX STI Type RA 2. 5 H4 GAS FI 2458cc | DOHC
2019 Subaru WRX STI Base 2. 5 H4 GAS FI 2458cc | DOHC
2019 Subaru WRX STI Limited 2. 5 H4 GAS FI 2458cc | DOHC
2019 Subaru WRX STI S209 2. 5 H4 GAS FI 2458cc | DOHC
2019 Subaru WRX STI STI 2. 5 H4 GAS FI 2458cc | DOHC
2019 Subaru WRX STI Sport 2. 5 H4 GAS FI 2458cc | DOHC
2019 Subaru WRX STI Sport-tech 2. 5 H4 GAS FI 2458cc | DOHC
2020 Subaru WRX STI Base 2. 5 H4 GAS FI 2458cc | DOHC
2020 Subaru WRX STI Limited 2. 5 H4 GAS FI 2458cc | DOHC
2020 Subaru WRX STI STI 2. 5 H4 GAS FI 2458cc | DOHC
2020 Subaru WRX STI Sport 2. 5 H4 GAS FI 2458cc | DOHC
2020 Subaru WRX STI Sport-tech 2. 5 H4 GAS FI 2458cc | DOHC
2021 Subaru WRX STI Base 2. 5 H4 GAS FI 2458cc | DOHC
2021 Subaru WRX STI Limited 2. 5 H4 GAS FI 2458cc | DOHC
2021 Subaru WRX STI Sport 2. 5 H4 GAS FI 2458cc | DOHC
2021 Subaru WRX STI Sport-tech 2. 5 H4 GAS FI 2458cc | DOHC ACT aims to provide the best pedal feel,raised torque capacity and extended wear life. STILLEN and ACT have been working together for more than 2 decades to offer superior clutch products to our customers.

Features and Benefits:

Made in America
Improved pedal feel
Increased torque capacity
Friction material selected for high heat resistance, quick recovery, excellent friction and long service life
Quicker shifting and engagement
Improved assembly materials for higher burst strength
Precision broached splines ensure superior fit to input shaft
Heat treated spring windows and drive plates
SFI certified
